Features
Notes
Technical details
Features
How to Charge Your Device
-
1. Unfold the solar panels and spread them so they are in direct sunlight.
-
2. Connect your device to the solar charger with the supplied USB cable or DC cable.
-
3. Place the connected device in the solar charger's pocket or keep it out of the sunlight as direct sunlight and excessive heat may damage the device.
Notes
-
1. The solar charging speed totally depends on the sun, cloudy weather, indirect sun may be too weak to power, please replace the solar panel in somewhere more full sun.
-
2. The solar charger can not store power, you should charge your devices directly under the sun.
-
3. It is recommended to use the solar charger together with a power bank, so the power generated by the solar panel can be saved and stored.
-
4. To ensure best performance, we strongly suggest charging your device with original cable or a third-party certified cable.
Technical details
-

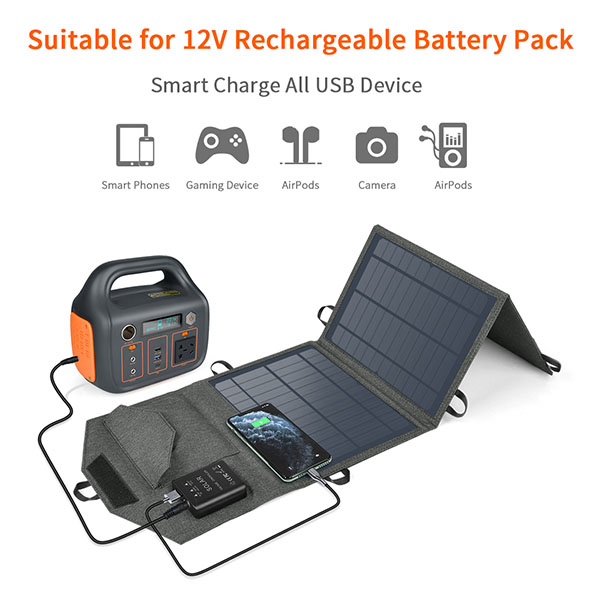

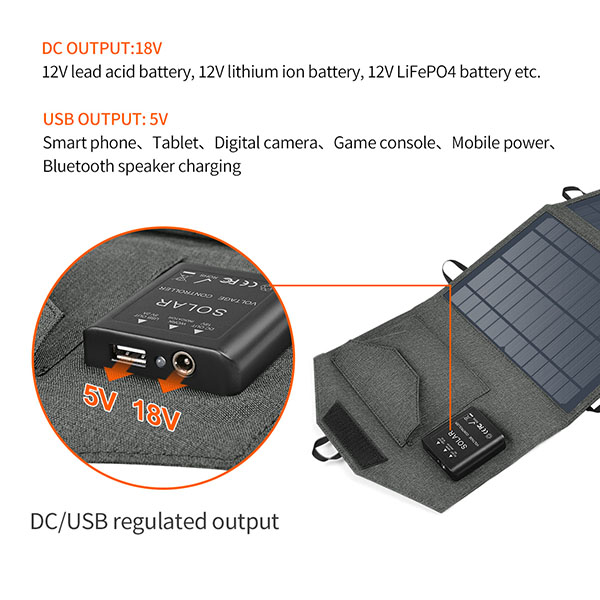

DC 18V 5.5*2.1mm port output with solar controller built in special for all types of 12v battery, such as 12v lead acid battery, 12v lithium ion battery, 12v lithium iron phosphate battery(LiFePO4) etc.
-
Suitable for our 12V series lithium ion battery, model YB1203000/YB1206000/YB1203000-USB/YB1206000-USB/YB1208300-USB/YB12011000-USB/PB120B1 and more.
-
5V USB output with Exclusive Fast Charging Technology. Automatically detect the max charging current and voltage for your devices.
-
Special electronic protection technology to prevent current flowback(leakage) from battery to solar panel while solar light is weak. Connecting two solar panels by Y-shaped splitter cable can double the power of the solar panels from 21W to 42W.
